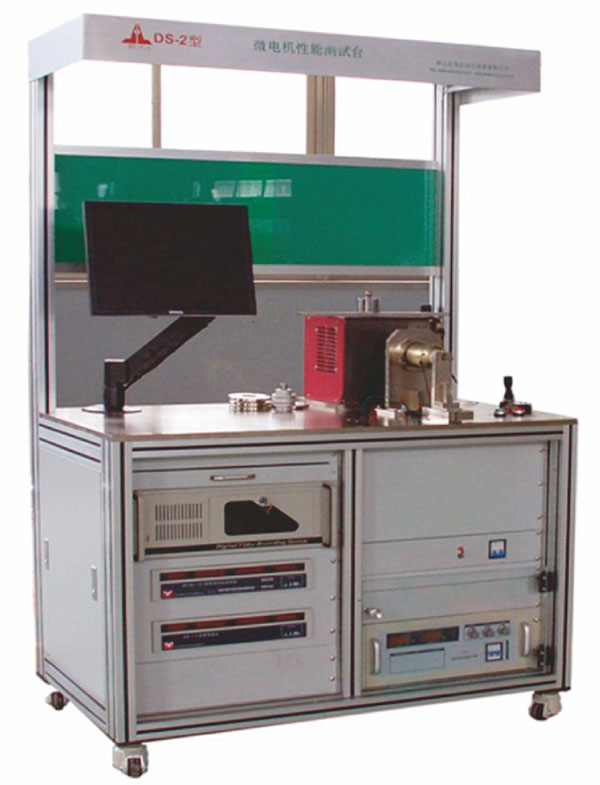

DS-2型 電機特性試驗臺
DS-2 Micro Motor Features Testing Platform
適用于微電機整機多項參數的性能檢測和儲存數據報告及打印。 采用工業級應用系統，微電腦控制、全數字設定，有手動或自動加載。對電機的轉速、電流、電壓、轉矩、功率、效率參數進行準確測量并打印特性曲線，儲存數據，本機由磁滯測功機、激光打印機、電量儀、控制儀和穩壓電源組成，操作簡單方便。
It is suitable for the performance test and storage data report and printing of many parameters of the whole machine. Using industrial-grade application system, microcomputer control, all-digital setting, manual or automatic loading. The machine is
composed of magnetic hysteresis dynamometer, laser printer, electric quantity meter, controller and power supply. It can measure the speed, current, voltage, torque, power and efficiency of the motor accurately and print the characteristic curve, Operation is simple and convenient.
技術參數/Technicai Parameters
|
電源電壓Supply voltage |
AC220±10% 50Hz |
|
氣源壓力Air pressure
|
0.4~0.7MPa |
|
轉矩Torque |
0.2/0.5/1/2/5/10/20N.m |
| 轉速Rotating speed |
0~15000r/min |
|
直流電流DC current |
0~100A DC |
|
直流電壓DC voltage |
0~30V DC |
| 特殊規格可定制Special specifications can be customized | |
