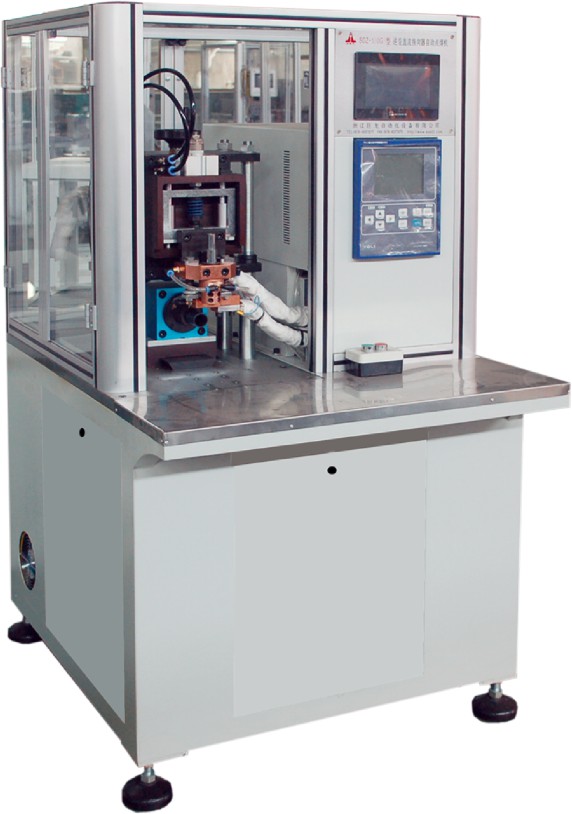

（國產逆變直流焊接電源氣缸加壓)SDZ-130G型 換向器自動點焊機
SDZ-130G DC output Automatic Commutator Spot Welding Machine
本機適用帶鉤或開槽電機換向器與轉子導線的自動焊接。采用進口PLC控制器和觸摸屏顯示器控制焊機動作，配置國產逆變焊機控制、可定電流、定功率、定電壓等控制，能通過各段焊接電流的合理選擇來達到高質量的焊接，工件機械定位對槽，可設定角度補償，所有動作一次完成，性能優越，焊接質量高。
This machine is suitable for automatic welding of the commutator and the rotor wire with hook or slotted motor. It adopts imported PLC controller and touch screen display to control the welding machine movement. It is equipped with domestically produced inverter welding machine control, constant current, constant power and constant voltage control, a variety of welding code and multi-section power supply. With the current slow rise, slow down function. Can be selected by the reasonable choice of welding current to achieve high-quality welding, the workpiece mechanical positioning on the slot, can be set to the angle compensation, with built-in cooling water tank, import solenoid valve control welding cylinder, fast and stable, all actions once completed Simple, superior performance, high-quality welding.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
額定容量Rated Capacity |
0~50kVA |
| 焊接電流Welding current |
10000A |
| 轉子直徑Rotor Diameter |
≤Φ90mm |
| 可焊線徑Wire diameter |
0.12~1.2mm |
| 軸徑Shaft diameter |
≤Φ17mm |
| 換向器直徑Commutator diameter |
≤Φ40mm |
