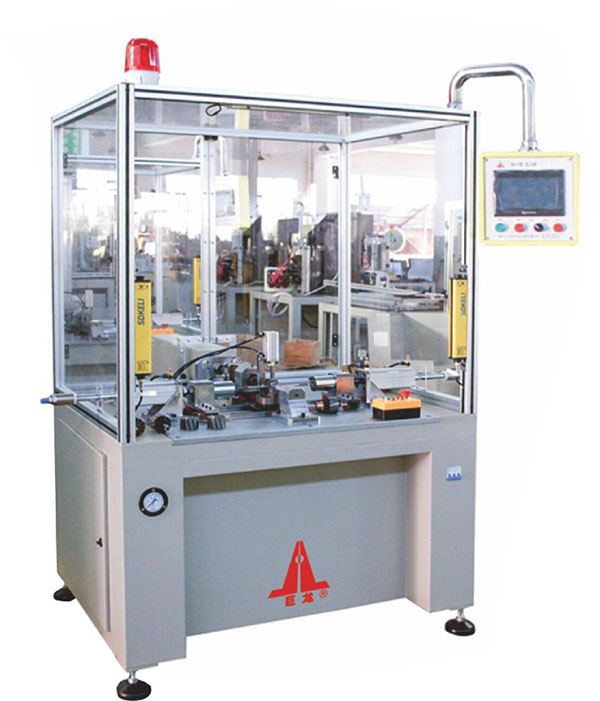

（伺服控制）DH-2S型 端板換向器壓入機
DH-2S Servo Rotor Insulation Compound and Commutator Pressing Machine
適用于微電機轉子端板及換向器的自動壓入。采用三菱PLC程控，彩色觸摸屏顯示器，伺服電機壓換向器，定位準確，速度均勻，旋轉式將兩端板與換向器自動分步壓入，生產效率高，操作簡單方便。
Applicable to the micro-motor rotor end plate and commutator automatic pressing. It adopts Mitsubishi PLC program control, color touch screen display and servo motor commutator. accurate position,stable speed. The rotary type will automatically press the two end plates and the commutator step by step. The production efficiency is high and the operation is simple and convenient.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
2kw |
| 工件直徑Workpiece diameter | 30~80mm |
| 工作行 程Working stroke |
用戶定制Customized |
