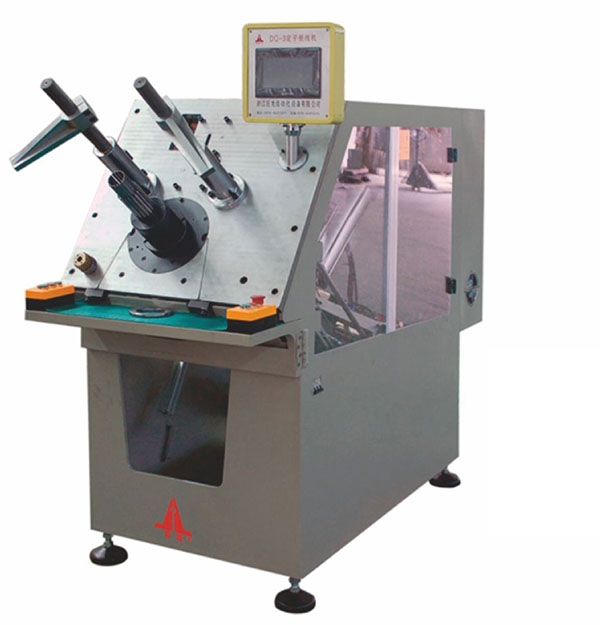

（快速換模）DQ-1G型 定子嵌線機
DQ-1G Stator Coil Inserting Machine
本機適用于感應電機定子繞組自動嵌入定子槽，并自動嵌入槽蓋紙的專用設備。采用三菱PLC程控，彩色觸摸屏操作及故障診斷功能，伺服電機驅動滾珠絲桿及推頭推入線圈入槽，行程控制準確，速度均勻，三相繞組或單相電機主副線圈一次性嵌入。采用一體化嵌線工裝，更換簡單方便，工裝堅固，使用壽命長，工作效率高。
Suitable for induction motor stator windings automatically embedded stator slot, and automatically embedded in the slot cover paper special equipment. Mitsubishi PLC program control, color touch screen operation and fault diagnosis, servo motor drive ball screw and push into the coil into the slot, stroke control accuracy, speed, . The use of integrated line tooling, replacement is simple and convenient, solid tooling, long life, high efficiency.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa |
|
總功率Total power |
4 kw |
| 定子內徑Stator ID | Φ30~Φ120mm |
| 定子外徑Stator OD |
≤Φ210mm |
|
鐵芯厚度Core thickness |
20~130mm |
| 槽數Slots | 12~48 |
| 線徑范圍Wire Range |
0.15~1.6mm |
