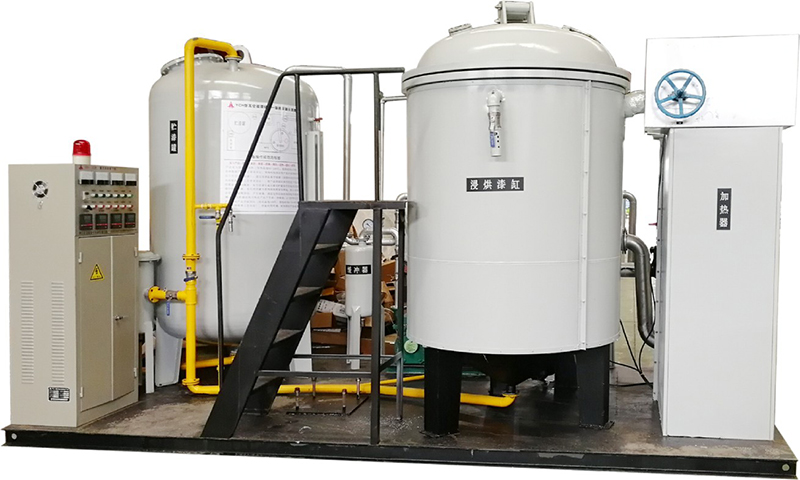

YCH-1200/1800型 線圈真空浸漆烘干機
YCH-1200/1800 Field Coil Varnish Immersing and Drying Machine
本機主要用于電器線圈(電磁吸盤線圈、中小型電機、家用電器、中小型變壓器、互感器等)，真空浸漆絕緣處理，提高線圈的機械強度，絕緣強度及防潮、導熱性能。采用PLC程控，自動開蓋，安全連鎖保護裝置，不銹鋼遠紅外電熱管加熱，高溫氣動閥門，超溫報警，異常自斷加熱電源，裝有防爆裝置，低溫干燥，高溫固化，減小絕緣漆浪費，保護環境，使用安全可靠。
This machine is mainly used for electrical coil (electromagnetic chuck coil, small motor, household appliances, small and medium transformers, transformers,etc.), vacuum impregnation insulation treatment.PLC, automatic open cover, safety chain protection device, stainless steel heating tube far infrared heating, high temperature pneumatic valve, over-temperature alarm, abnormal self-heating power supply, explosion-proof device, low temperature drying, high temperature curing, reduce insulation Paint waste, protect the environment, the use of safe and reliable.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
總功率Total power |
30kw |
|
真空度Vacuum degree |
≤-0.095MPa |
| 主浸漆缸Main Dip Cylinder |
Φ1.2x1.5m Φ1.8x1.9m |
|
加熱溫度Heating temperature |
150℃ |
| 特殊規格可定制Special specifications can be customized | |
