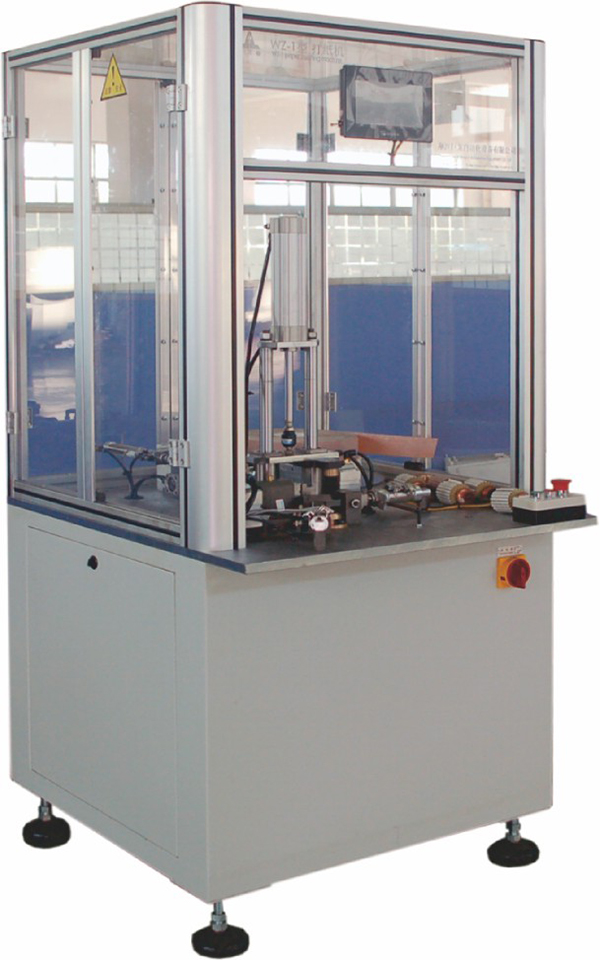

(雙圈以上專用)WZ-1型 波形自動打紙機
WZ-1 Automatic Paper Inserting Machine
本機是把絕緣紙打入轉子槽內，槽與槽之間絕緣紙相連不斷，形似“W”，故也稱W形打紙機。設備主要以壓縮氣源為動力，通過氣缸完成轉子定位、送紙、打紙、轉位、切紙等動作。利用打紙刀徑向打入絕緣紙，適合較厚絕緣紙打紙。槽與槽之間絕緣紙相連，更利于轉子繞線或嵌線。有手動、單步、自動三種工作方式。
This machine is used for the insulation paper inserting into the rotor slot. The insulation paper between the slot and the slot is connected continuously and looks like "W", so it is also called W-shaped paper inserting machine. The equipment mainly uses compressed air source as the power to complete the rotor positioning, paper feeding, paper inserting, indexing and paper cutting through the cylinder. Use a paper cutter to insert the insulation paper radially, suitable for thicker insulation paper. The insulation paper is connected between the slot and the slot, which is more conducive to rotor winding or coil inserting. There are three working modes, manual, single step and automatic.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
整機功率 Total power |
1KW
|
| 轉子外徑Rotor OD |
Φ20~Φ100mm
|
| 特殊規格可定制Special specifications can be customized | |
