XBQ-1型 換向器并切頭機
XBQ-1 Commutator Connection WireInserting and Cutting Machine

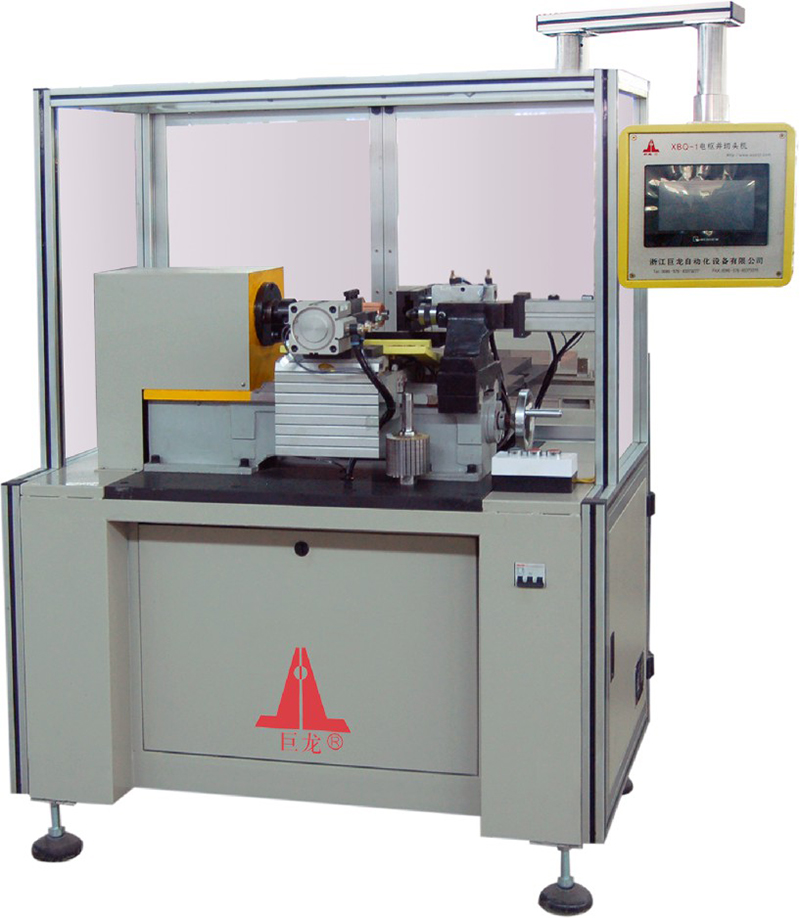

適用于起動電機換向器端線頭切平后把線頭并入換向器的專用設備。采用三菱PLC程控，觸摸屏顯示，電機減速驅動主軸旋轉，步進電機步進無銅屑切平和滾壓式將線頭并頭入換向器嵌線槽，氣缸尾座頂緊轉子，操作簡單，自動化程度高。
Suitable for start-up motor commutator end of the line after cutting the head into the commutator of the special equipment.Mitsubishi PLC program-controlled, touch screen display, the motor deceleration to drive the spindle rotation, stepper motor stepping without copper cutting and rolling type will head and head into the commutator embedded trough, cylinder tailstock top rotor, simple operation ,high automation.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa |
|
總功率Total power |
3kw |
| 生產節拍Takt Time |
≤45s |
| 電樞外徑 Armature OD |
40~100mm |
| 總長度Total length |
≤250mm |
| 繞組截面Winding section |
≤16mm2 |
